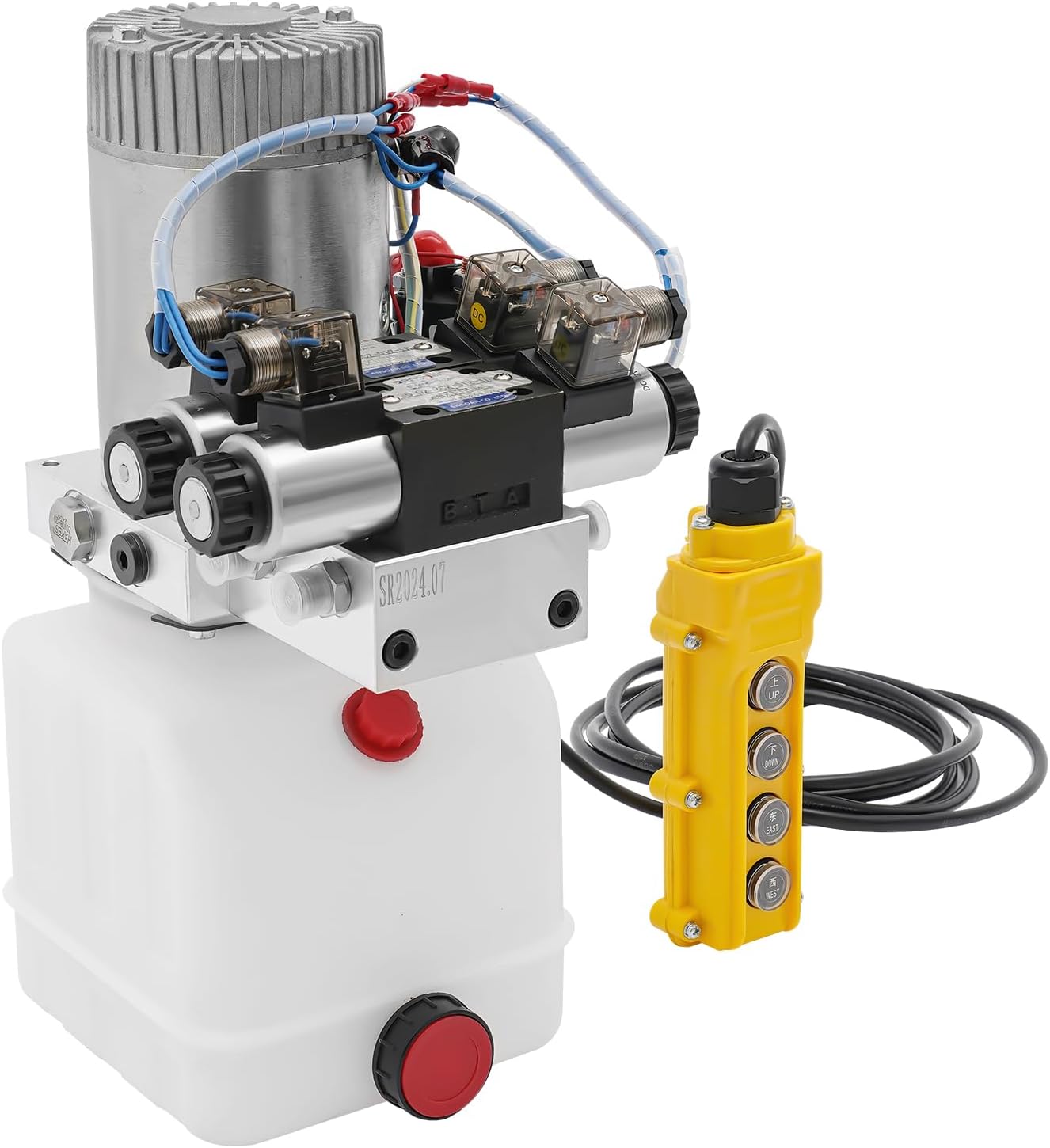

Double Acting Hydraulic Pump 12V DC 4.5 Quart Hydraulic Power Unit 1.6kW 3000RPM 22MPA Hydraulic Station Pump with Plastic Reservoir Hydraulic Pump for Dump Trailer Truck Car Lifting

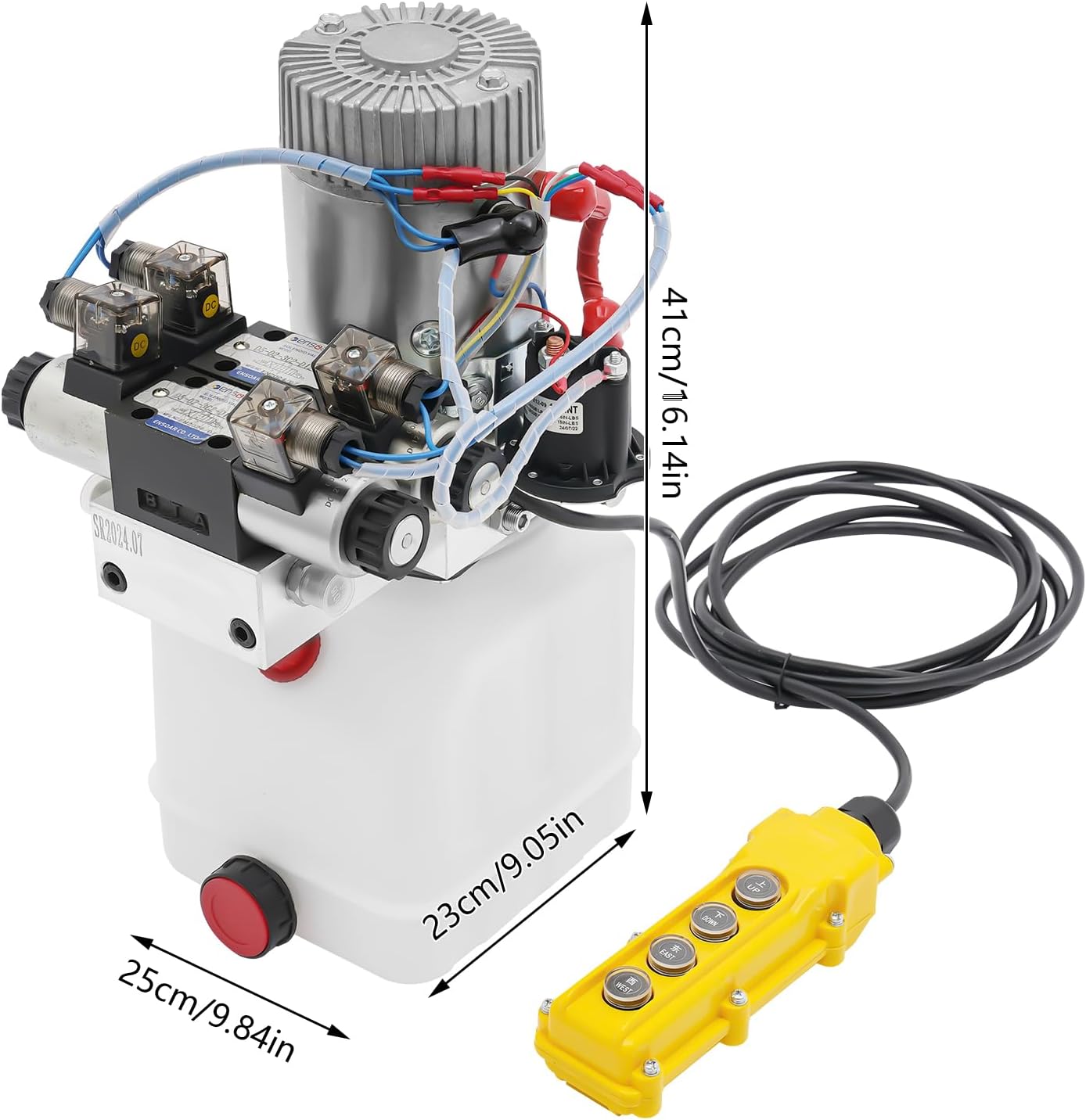

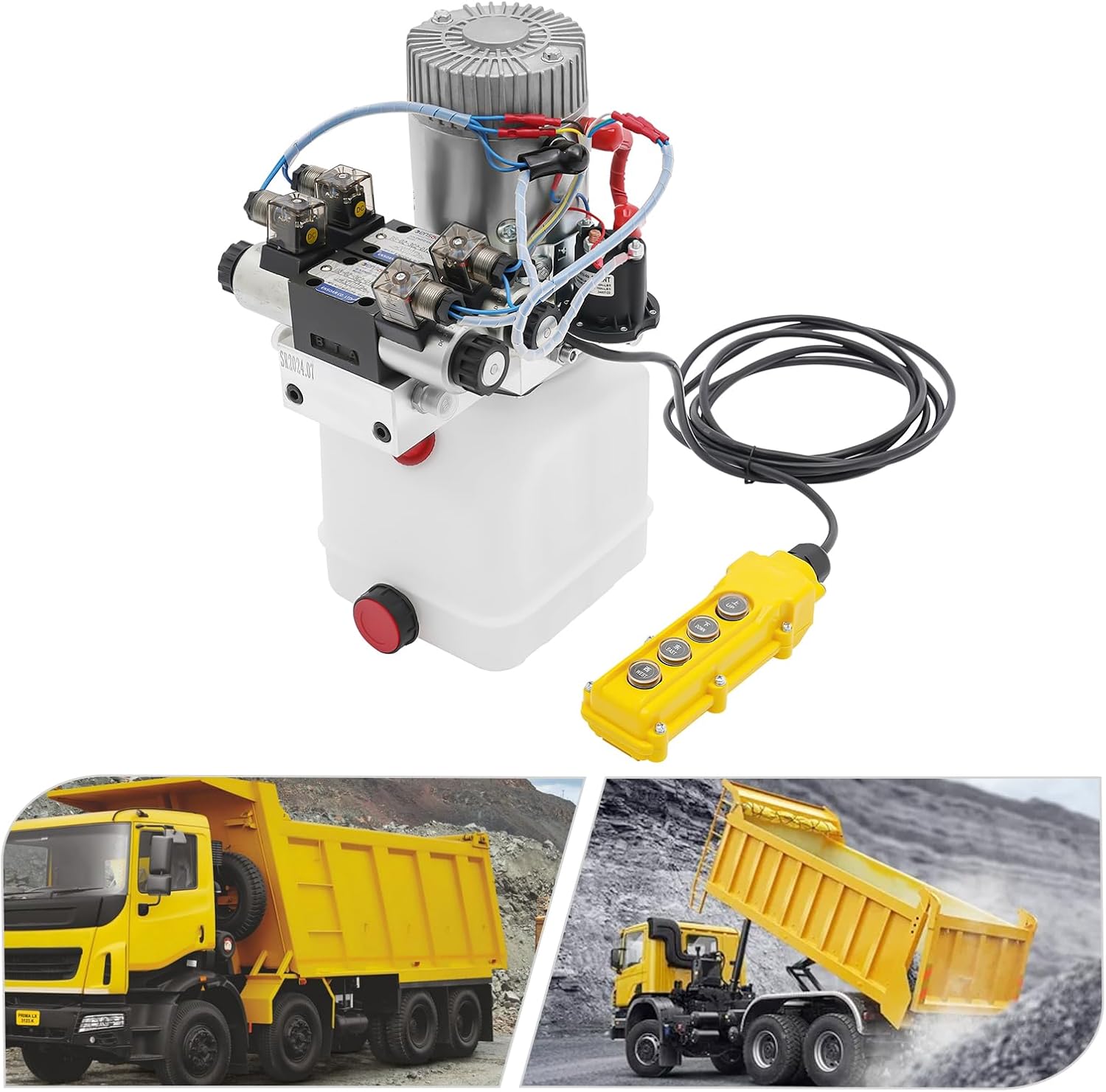

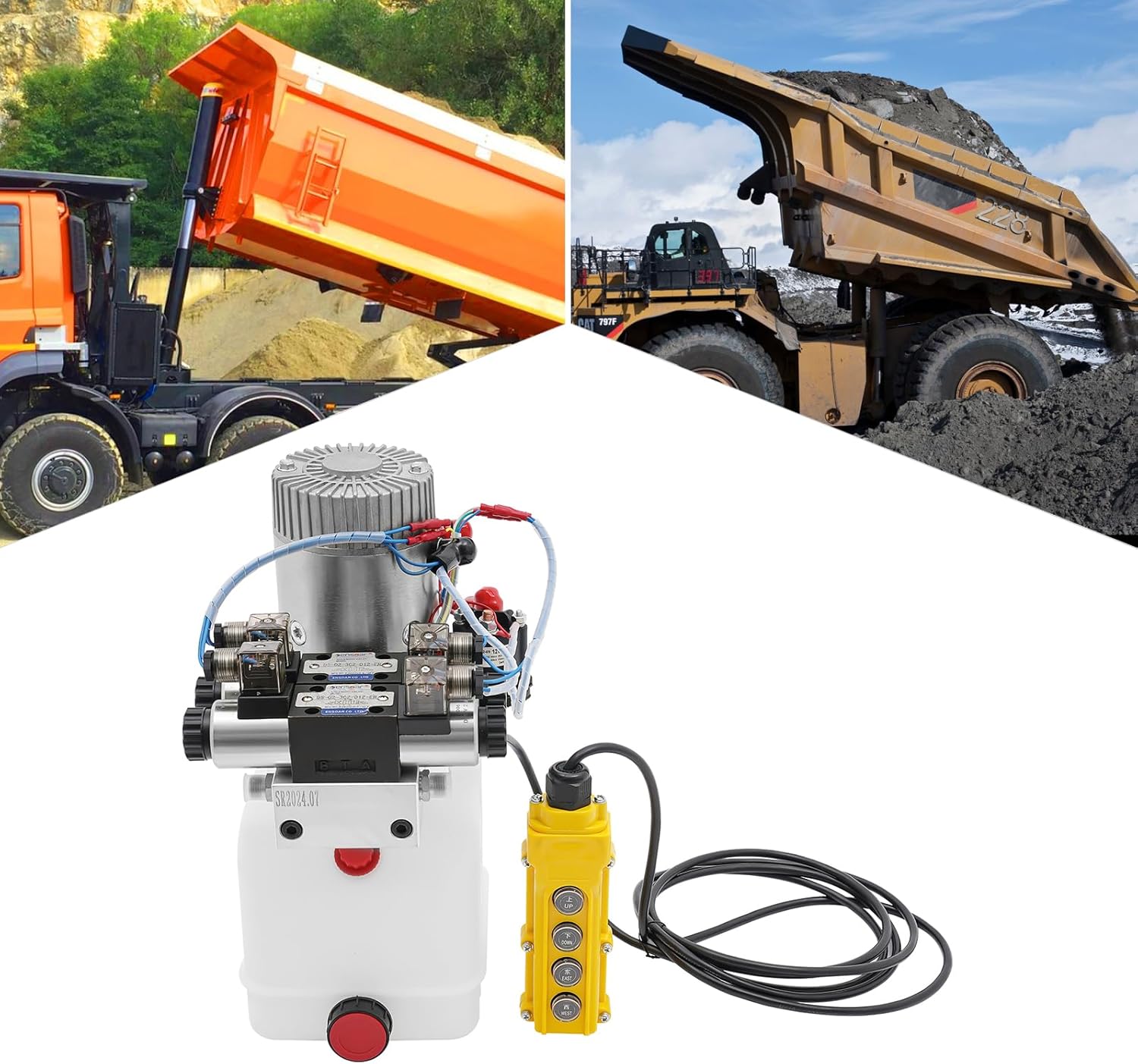

ApplicationIt can be used for hydraulic trailers, lifting platforms, stacker trucks, boarding bridges, sanitation trucks, tipper trucks, handling trucks, tractors, forklift trucks, basketball hoops, smoke machines, automobile tailgates, RVs, boat lifts, lift gates, clearance vehicles, car transporters, agricultural equipment, snow ploughs, aerial platform, road signs, material handling, truck tailgate lift, and so on.SpecificationsMaterial: Aluminium, Iron, Steel Color: BlackActions: Double ActingInstallation Method: Horizontal InstallationVoltage: DC12VPower: 1.6KWSpeed: 3000RPMDisplacement: 1.1ML/0.04OZ/RTank Capacity: 4.26L/4.5QTApplicable Medium: Hydraulic Oil (Not Included)Motor Type: Brush DC MotorControl Mode: Wired Handle(Included)Pressure: 22 MPANoise: Within 75dBOutlet Thread: G1/4Handle Cord Length: 4m/13.12ftProduct Size: 41*25*23cm/16.14*9.84*9.06inPackage Size: 53*25*26cm/20.87*9.84*10.24inGross Weight: 13kg/28.66lbsNet Weight: 12.87kg/28.37lbsPackage Included1*Double Acting Hydraulic PumpNotes1. Please check the size carefully before ordering.2. Please note that the suitable hydraulic oil viscosity range is 22-46mm²/s. ATF, OD18, or other clean hydraulic oil with a viscosity of 150-300 SUS at 100.4℉ is acceptable.3. Please note that the hydraulic oil to be filled into the tank should be filtered and the filter precision should be not less than 25μm.

• High Efficiency -- The powerful 1.6KW brush DC motor, 3000RPM speed, and 22MPA pressure ensure fast start-up and oil output, which can provide strong power for the hydraulic system and complete lifting operations in a short time.
• Safety First -- This 12V DC double acting hydraulic pump comes with a relief valve to avoid over-pressure, and the throttle valve can control fall speed in a certain extent, giving you time to react.
• Good Performance -- Our hydraulic power unit is a double-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work.
• Large Capacity -- The fuel tank features a capacity of 4.5QT, so you can easily use it without frequent refueling.
• Standard Thread -- The standard thread of G1/4 is convenient for you to connect most oil pipes (not included).
