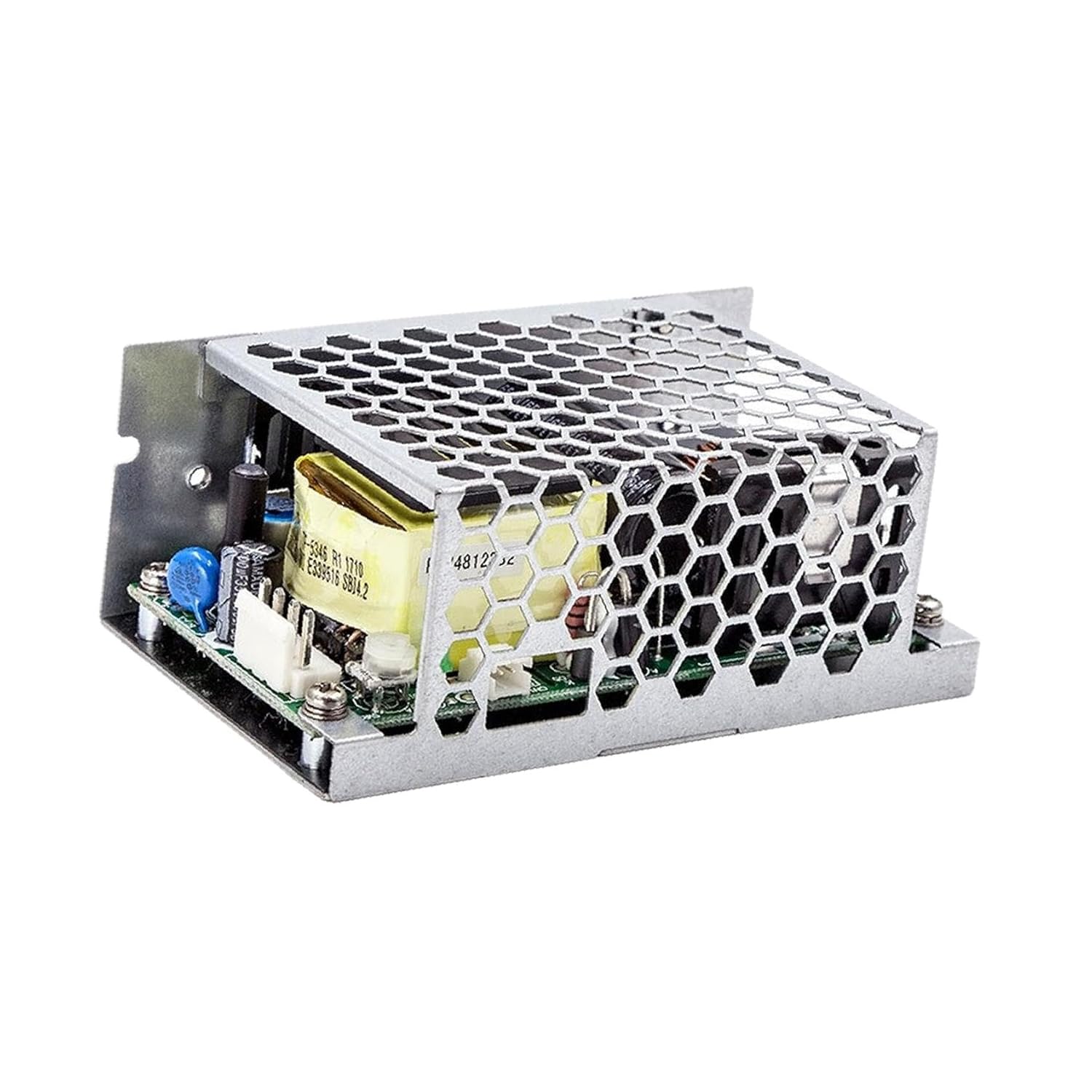

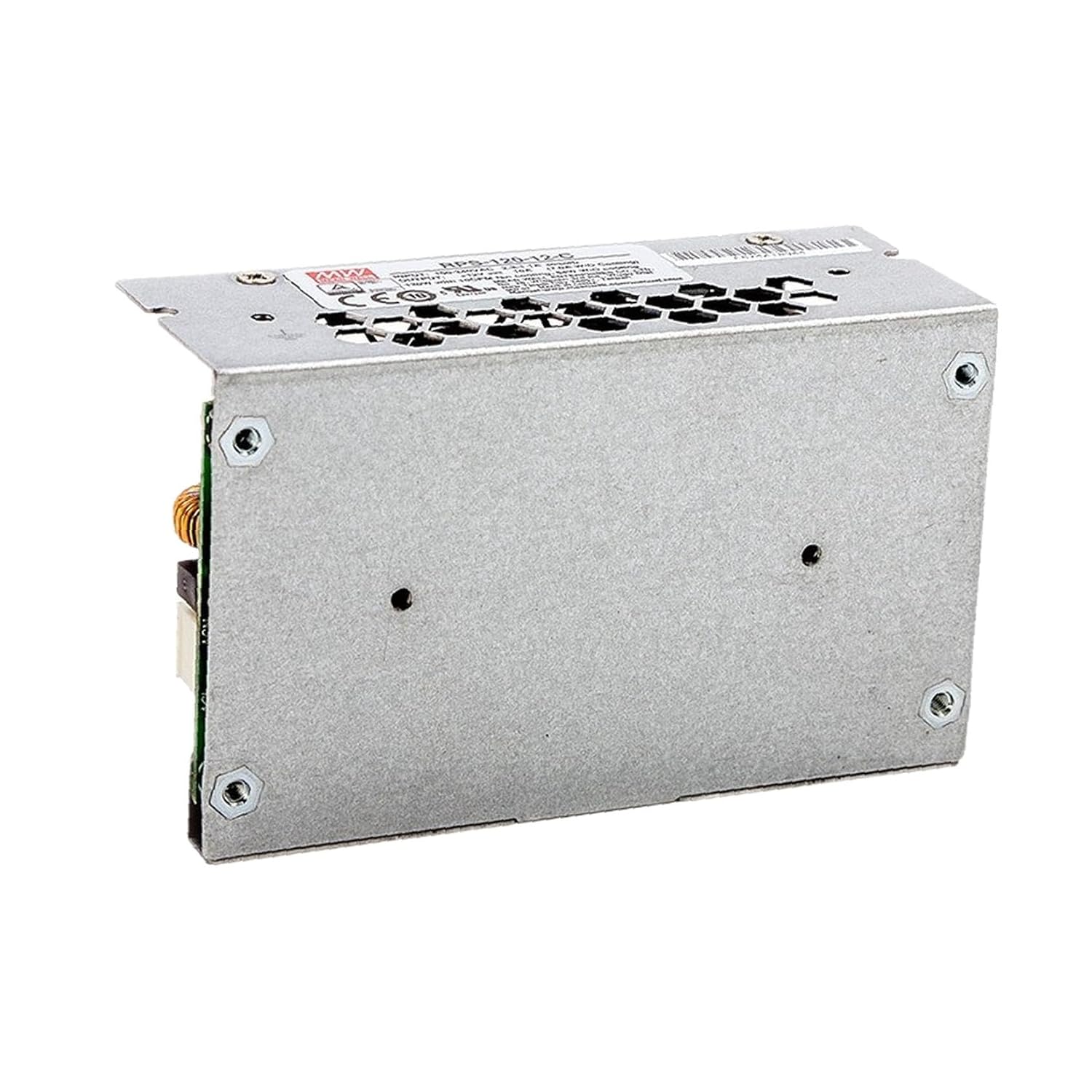

DYSGLOBAL RPS-120-12-C 120W AC-DC Power Supply 12V 10A Output, Compact 4x2 Inch Design for Dental Irrigation Systems, Medical Monitoring Equipment and Pump Applications

The DYSGLOBAL RPS-120-12-C is a high-reliability 120W AC-DC power supply designed for demanding professional applications. This compact 4x2 inch unit delivers stable 12V DC output with 10A current capacity, featuring wide input voltage range of 80-264VAC or 113-370VDC for global compatibility. Engineered with medical-grade safety standards, this power supply meets ANSI/AAMI ES60601-1 and IEC/EN 60601-1 certifications with 2xMOPP rating, making it ideal for BF-type applications where patient contact is involved. The unit operates with exceptional energy efficiency up to 89% and maintains ultra-low no-load power consumption below 0.3W. Its advanced thermal management supports natural convection cooling at 84W and includes a 12V/0.5A fan for forced air cooling at full 120W capacity. The power supply incorporates comprehensive protection mechanisms including short circuit, overload, overvoltage, and overtemperature safeguards. With EMC compliance for both Class I (with ground) and Class II (without ground) systems and capability to operate at altitudes up to 4000 meters, this unit demonstrates robust performance in challenging environments. The compact dimensions of 4.07x2.44x1.58 inches and lightweight design (0.53 lbs) make it suitable for space-constrained installations. Designed for professional dental equipment, medical monitoring systems, dialysis machines, sleep apnea devices, and industrial pump applications, the RPS-120-12-C combines reliability, safety, and performance in a compact form factor.

• Medical-Grade Safety Compliance - Certified under ANSI/AAMI ES60601-1 and IEC/EN 60601-1 standards with 2xMOPP rating, ensuring reliable operation in BF-type patient-contact applications with leakage current below 150µA
• High-Efficiency Performance - Delivers up to 89% energy conversion efficiency with ultra-low no-load power consumption under 0.3W, reducing energy waste and operational costs
• Compact and Durable Design - Features a space-saving 4x2 inch footprint with industrial-grade construction, capable of operating at altitudes up to 4000 meters and wide temperature range from -22 to 158°F
• Comprehensive Protection Features - Built-in safeguards including short circuit, overload, overvoltage, and overtemperature protection ensure stable performance and equipment safety
• Versatile Application Compatibility - Suitable for various professional equipment including dental irrigators, dialysis machines, sleep apnea devices, and industrial pump systems with Class I/II EMC compliance
