HDMI Audio Extractor Converter with I2S/DSD/Coaxial/Optical Output, 4K 3D MHL Support, HDMI I2S for DAC

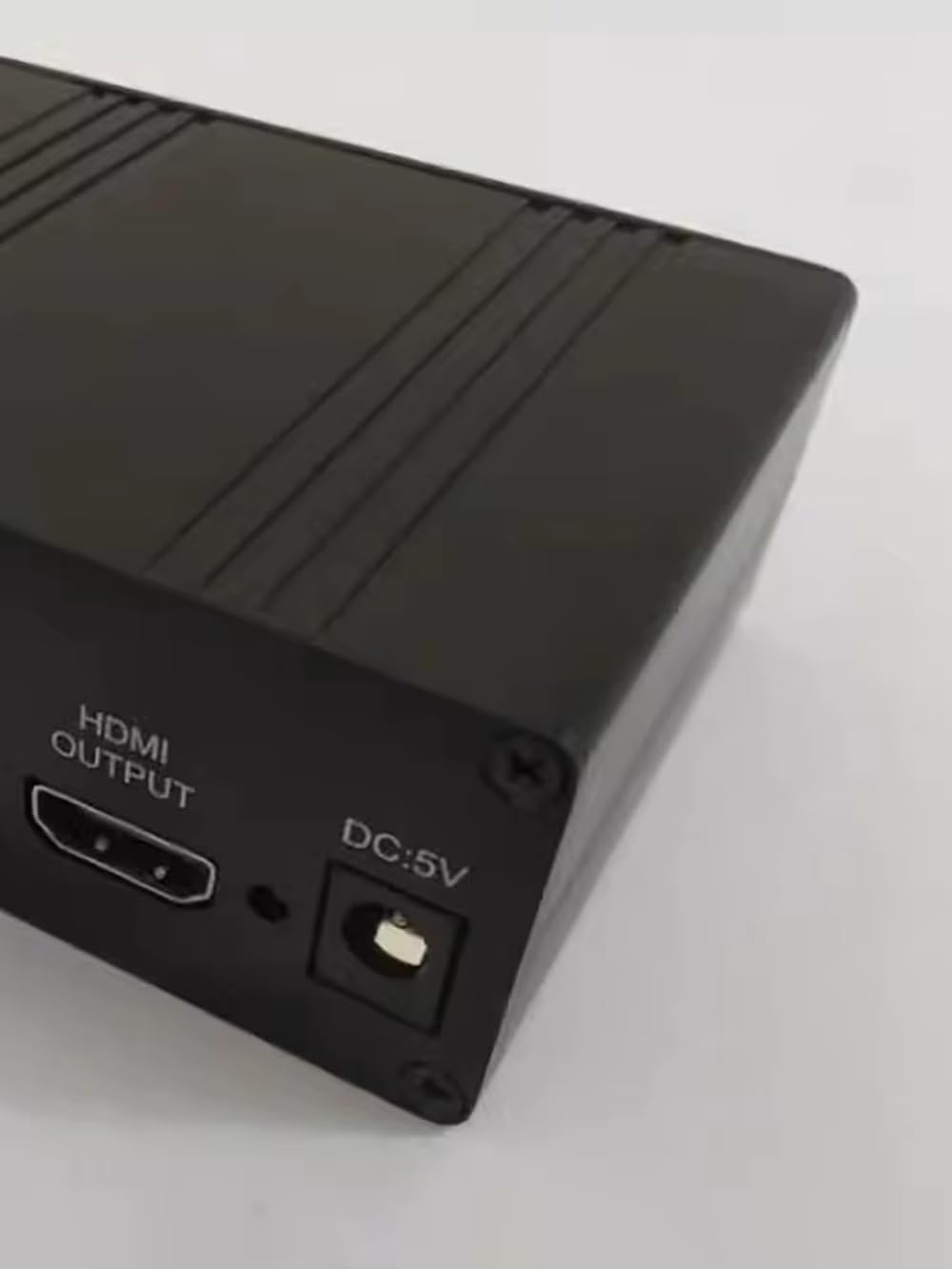

HDMI Audio Extractor Converter with I2S/DSD/Coaxial/Optical Output, 4K 3D MHL Support, HDMI I2S for DAC Descriptions: This HDMI Audio Extractor is designed to extract digital audio signals from HDMI sources and output them via I2S (supports DSD), Optical, Coaxial, and HDMI I2S interfaces It allows you to connect to an external DAC for high-quality audio playback while maintaining HDMI video passthrough to your TV or projector Ideal for home theater systems, audio enthusiasts, and professional setups Features: Audio Extraction: Extracts digital audio from HDMI input and outputs through multiple interfaces: I2S (via 2.54mm pin header, supports DSD) HDMI I2S (via HDMI female connector, transports I2S signals for compatible DACs) Coaxial (RCA) Optical (Toslink) Video Passthrough: Supports 4K@60Hz, 3D, and CEC pass-through via HDMI output MHL Compatible: Works with MHL-enabled devices (smartphones, tablets) via the HDMI input (MHL adapter required if device does not have MHL output) Flexible Power: Bus-powered via HDMI (most devices work without external power) External 5V DC, 1A power input (5.5x2.1mm DC jack, center positive) for cases where HDMI power is insufficient (e.g., signal LED flashes or unstable output) Wide Compatibility: Works with Blu-ray players, game consoles, set-top boxes, PCs, and more Specifications: Input: HDMI (Type A, female) x1 Outputs: HDMI (Type A, female) x1 (video passthrough) Coaxial (RCA) x1 Optical (Toslink) x1 I2S (2.54mm pin header) x1 (supports DSD) HDMI I2S (Type A, female) x1 (for I2S audio output, not for video) Audio Format Support: PCM 2.0, Dolby Digital, DTS, up to 192kHz/24-bit via I2S/coaxial/optical Video Resolution Support: 4K@60Hz, 3D, 1080p, 480p, etc. MHL Support: Yes (MHL 2.0/3.0 compatible) CEC Support: Yes Power: 5V DC, 1A (via HDMI or external adapter) External Power Connector: 5.5mm x 2.1mm, center positive Important Notes: Not compatible with DACs based on the ES9038 chip. Please verify your DAC's compatibility before purchase If the device does not power on or the signal LED flashes, connect an external 5V power adapter (not included) to ensure stable operation The HDMI output is for video passthrough only; audio is stripped from the input signal The HDMI I2S output is designed to carry I2S signals over an HDMI cable and should only be connected to DACs with a compatible I2S-over-HDMI input. Do not connect to a TV or monitor

• This HDMI Audio Extractor is designed to extract digital audio signals from HDMI sources and output them via I2S (supports DSD), Optical, Coaxial, and HDMI I2S interfaces
• It allows you to connect to an external DAC for high-quality audio playback while maintaining HDMI video passthrough to your TV or projector
• Ideal for home theater systems, audio enthusiasts, and professional setups
