VSDISPLAY 12.5 inch 1920X1080 LCD Screen B125HAN02.2 with Board Controller

LCD Controller Board: Board Work for 30Pin EDP LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <0.3W Audio Input: 2 Mini Audio Output: Earphone OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English French German Spanish Italian And So On Board Size:82mm x 60mm x 5mm 12.5" B125HAN02.2 1920X1080 LCD Screen: Display Mode AHAV, Normally Black, Transmissive Resolution 1920(RGB)×1080 Outline Size 282.4 ×179.32×2.5(H×V×D) Display Area 276.48× 155.52 (H×V) Brightness 300 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (2 Lanes) , 30 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.) Packing list : 1× 2 Mini LCD Controller VS-RTD2556HM-V1 1× 12.5inch 1920X1080 LCD Screen 1× Signal Cable 1× Keyboard With Cable

• 12.5inch 1920X1080 LCD Screen B125HAN02.2 ,Signal Interface eDP (2 Lanes) , 30 pins , Connector
• Compatible work with LCD Controller Board
• Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <0.3W
• Audio Input: 2 Mini , Audio Output: Speaker

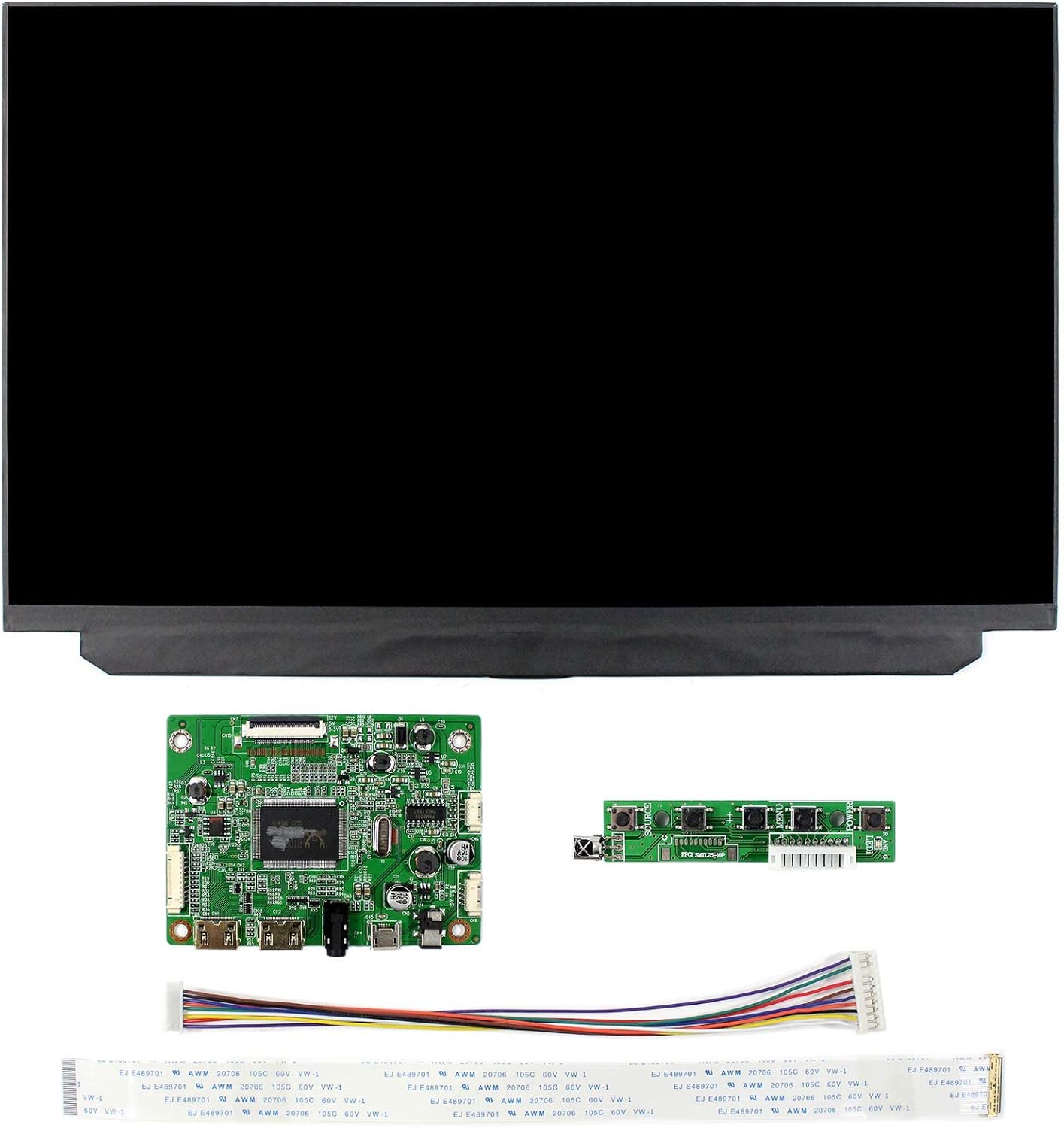

• 1× 2 Mini LCD Controller VS-RTD2556HM-V1 , 1× 12.5inch 1920X1080 LCD Screen, 1× Signal Cable, 1× Keyboard With Cable
